Dune HD Lite 53D
- Emplacement pour HDD 2.5"
- Puce Sigma SMP8653
- Pas de compatibilité BD ISO
Dune HD Lite 53D
Introduction
Dune HD Lite 53D is an entry-level universal media player which allows to play back video of standard and high definition up to Full HD (1080p), and also can be used as a specialized set-top-box for digital TV programs reception.
The device is compact, looks attractive and, remarkably, is presented in four different colors: with black, white, pink and light-blue case.

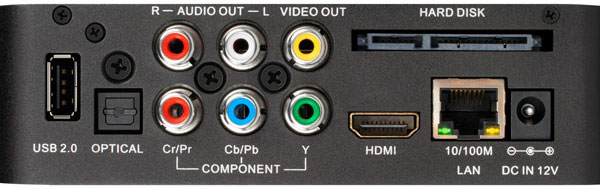

The player features two high-speed USB 2.0 ports, SD memory card slot and SATA (in case the internal HDD is installed, the external SATA port is turned off) connector (together with SATA power connector) for connecting external storage. Set of video outputs is represented by one HDMI v1.3 port, composite and component analog outputs. Sound may be connected via HDMI, using the optical Toslink interface, or an RCA stereo connectors. A special feature is the capability to play back audio and video files over a local network. For this purpose an Ethernet port is offered, which allows to transmit data with a high rate of up to 100 M bits per second.
In terms of functionality, the Dune HD Lite 53D meets all requirements addressed to modern multimedia players of low-price segment, and in many points exceeds them. For example, it allows to install a 2.5" SATA HDD inside the case for recording and playback of different audio and video contents.
The Lite 53D is compatible with almost any modern audio and video format, supports IPTV and Internet Radio, and has an embedded torrent client. It also should be noted that the functionality of the Lite family players is continuously improving by regular firmware updates.
Key Features
The newest Sigma Designs 8653 media processor: enjoy excellent playback and performance of interactive features.
HDD player: connect an HDD to the player and play content directly from the HDD.
Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.
2 USB ports: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.
SATA port: connect an HDD via the most efficient SATA interface.
SD card slot: easily play media files on SD memory cards from your camera or other devices, or use an SD memory card as a local storage.
HDMI 1.3: ensure the best possible quality of HD video and audio.
A rich set of standard A/V connectors: use S/PDIF optical audio, stereo audio, component video, composite video outputs to easily connect any A/V equipment.
Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).
Extra Functions
High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc).
Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
BitTorrent: use built-in BitTorrent client to download files from P2P networks.
Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).
Internet radio: playback and record various Internet radio stations (HTTP/MP3).
IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider (check availability of multicast UDP/RTP streams with your Internet provider).
Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle (Digital TV USB dongle is not included; this option can be purchased separately).
Specification
Processor: Sigma Designs 8653
RAM: 256 MB
Flash memory: 128 MB, expandable with a HDD partition, USB flash drive, or SD card (2GB recommended)
Media sources: internal HDD (SATA 2.5”), external HDD (USB, SATA), external optical drive (USB, SATA), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP/RTP)
Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, DVD-ISO, VIDEO_TS
Optical disc formats: data discs (CD/DVD/BD) (MP3, JPEG, etc), Audio CD (PCM/DTS), DVD-Video (retail and user-authored discs) (playback of optical discs requires an external optical drive).
Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
Video output framerate: automatic (according to the played content) and manual
Audio codecs: AC3 (Dolby Digital), DTS, MPEG, AAC, LPCM, WMA, WMAPro, EAC3 (Dolby Digital Plus), FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), Ogg/Vorbis, WAV, DTS-WAV, DTS, AC3, AAC
Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (TS, MKV)
Picture file formats: JPEG, PNG, BMP, GIF
Playlist file formats: M3U, PLS
Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), NTFS (read-write)
Ethernet: 10/100 Mbit
WiFi: optional 802.11n WiFi (via an external USB WiFi stick, D-Link DWA-140 recommended)
Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.
Dimensions: 85 mm (width) x 145 mm (depth) x 160 mm (height)
Country of origin
China
Manuel d'utilisation
http://hdlandforum.fr/viewtopic.php?f=24&t=85
Forum officiel HDi :
http://dune-forum.com
Page officielle de téléchargement firmwares :
http://dune-hd.com/firmware/
Télécharger l'application iPhone/iPad :
http://www.hdlandblog.com/2010/12/dune- ... phone.html
Convertir un disque dur NTFS en EXT2 sans perte de données :
viewtopic.php?f=1182&t=29920078&p=173480119&hilit=ext2#p173480119
Faire monter le disque dur interne formaté en EXT2/EXT3 sur Windows :
http://www.hdlandforum.fr/viewtopic.php?f=26&t=54
Note : Les disques dur NTFS sont reconnus aussi bien en lecture qu'en écriture.
Sujet officiel du Tuner TNT HD optionnel
http://www.hdlandforum.fr/viewtopic.php ... 56&start=0
Vote pour les prochaines fonctionnalités :
http://hdi.co.il/features
Menus DVD désactivés :
Sur certains disques DVD, les menus ne sont pas actifs. Pour les activer, appuyez sur la touche "SELECT".
Navigateur Web de la Dune :
http://hdi.co.il/firmware/web_browser
Ajouter des Radios Internet :
http://hdi.co.il/firmware/inet_radio
http://www.nrj.be/webradios/erreur.php
Ajouter des IPTV :
http://hdi.co.il/firmware/iptv
Fonctionnalités supplémentaires :
http://hdi.co.il/firmware/misc
Configurer la platine avec un NAS :
http://www.homecinema-fr.com/forum/view ... p173332017
Tutoriaux de paramétrages réseau : (SMB, NFS, NAS, ...)
http://www.homecinema-fr.com/forum/view ... t=29908819
ATTENTION ! En SMB, il faut désactiver le "Fast SMB". Pou rune lecture fluide des gros fichiers (ISO Blu-ray, M2TS), nous vous conseillons vivement le protocole NFS.
La fonction Expérimental Gigabit n'est pas recommandée.
[Tuto] Accès à la Dune en réseau depuis un ordinateur (FTP)
http://www.hdlandforum.fr/viewtopic.php?f=25&t=984
[Tuto HDi Dune] Raccourcis réseau SMB
http://www.hdlandforum.fr/viewtopic.php?f=25&t=635
[Tuto] Astuce pour avoir du NFS sur PC Windows
http://www.hdlandforum.fr/viewtopic.php ... p=248#p248
Générer un M2TS à partir d'un ISO Blu-ray
http://www.hdlandforum.fr/viewtopic.php?f=44&t=724
[Tuto] Régler la fréquence d'image sur la Dune
http://hdlandforum.fr/viewtopic.php?f=25&t=1049
Jaquettes :
iDune
http://www.mpcclub.com/temp/IDune.zip
Dune Explorer
http://www.homecinema-fr.com/forum/view ... t=29935947
DuneX (Mac)
http://www.homecinema-fr.com/forum/view ... t=29941763
TViXiE
http://www.tvixie.com/
My Movies
http://www.homecinema-fr.com/forum/viewforum.php?f=1182
MyAllMovies
http://www.myallmovies.com
yaDIS
http://www.hdlandforum.fr/viewtopic.php?f=25&t=601
ZAPPITI
viewtopic.php?f=1182&t=29935483
http://www.hdlandforum.fr/viewtopic.php?f=25&t=605
Déplacer les sous-titres verticalement :
1. Presser la touche "SUBTITLES" (sous-titres)
2. Presser les touches fléchées "HAUT/BAS"
Fonctionnalité valable uniquement en mode fichiers. Pour l'instant la fonction de marche pas sur la lecture DVD/Blu-ray.
Dune Binaries :
http://www.lundman.net/wiki/index.php/L ... e_binaries
Clavier sans fil HDI Dune :
http://www.hdlandforum.fr/viewtopic.php?f=25&t=1074
Procédure de recovery après plantage de mise à jour firmware :
http://www.hdlandforum.fr/viewtopic.php?f=25&t=187
